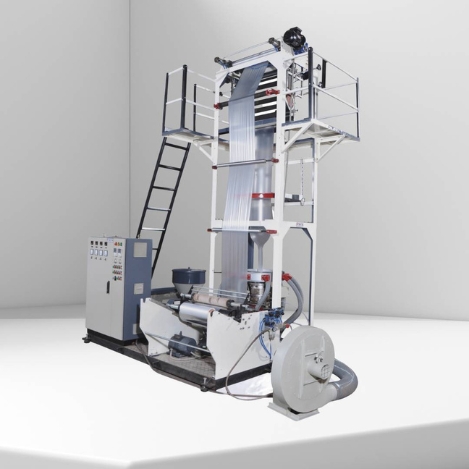

Compact Model Monolayer Plant

Product Details

Cygnet Machinery is at the forefront of innovation with its wide range of Blown Film Lines, designed to handle diverse resins, granules, output requirements, and applications. Our Monolayer Blown Film Facilities are built with precision, ensuring customers receive films of consistent quality and reliability.

A highlight of our product line is the Compact Model, known for its efficiency, adaptability, and space-saving design. Capable of processing materials such as LDPE, LLDPE, HM, HDPE, and biodegradable polymers (PBAT/PLA), this model offers an output range of 10 kg/hr to 25 kg/hr with a lay-flat width from 4 inches to 18 inches.

More than just performance, the Compact Model emphasizes resource efficiency. Customers benefit from cost-effective production, lower startup investment, faster changeovers, reduced waste, and improved productivity—all while maintaining superior film quality.

Equipped with advanced components such as groove feed screws, barrier screws, gravimetric blending/dosing systems, bubble controlling sensors, and bubble cage surface winders, our blown film lines ensure smooth operations and exceptional precision.

At Cygnet Machinery, we go beyond supplying machines—we deliver tailored solutions to meet specific production requirements. With our Compact Model Blown Film Lines, businesses experience not only efficiency and reliability but also a transformative boost in productivity and profitability.

Features

Compact size for space efficiency
High-performance AC main motor with inverter for energy savings and low maintenance
Screw and barrel crafted from special nitro alloy steel for durability and trouble-free operation
Die and air ring engineered for uniform flow distribution, precise film thickness, and superior quality control
High-velocity air ring blower for optimal cooling and stability
Economical, user-friendly design with easy operation and compact construction
Single-stage or two-stage helical gearbox to extend machine lifespan
Optimized for low power consumption and reduced labor requirements

Materials Processed

LDPE / LLDPE
PBAT / PLA (biodegradable resins)
HM / HDPE

Technical Specification

Model	CM-CMB-35	CM-CMB-45
Material To Be Processed	HM, LD, PBAT-BIO, HDPE	HM, LD, PBAT-BIO, HDPE
Screw Dia	35mm	45mm
Barrel Feed Type	Groove Feed	Groove Feed
L D Ratio	28:1	28:1
Film Thickness Range	20 to 100 micron	20 to 100 micron
Die	Spiral Type Die	Spiral Type Die
Filter Type	Candle Filter / Screen Changer	Candle Filter / Screen Changer
Lay Flat Film Width Range	100 to 450 mm	150 to 600 mm
Maximum Output	25Kg/Hr	40Kg/Hr
Winder	Attached Surface Winder	Attached Surface Winder
Machine Connected Load	20KW (27 HP)	29KW (39 HP)
Dimensions (L x w x h) Approx. In Feet	7 x 7 x 12	8 x 8 x 14
Optional Attachment	Rotating Die	Rotating Die
Optional Attachment	LDPE, LLDPE Attachment	LDPE, LLDPE Attachment
