Air Bubble Sheet Film Plant
Air Bubble Film Making Plant Manufacturer
An Air Bubble Film Making Plant is a key machine widely used in the packaging industry as well as for domestic applications. With the rapid growth of e-commerce, the global demand for air bubble film continues to rise.

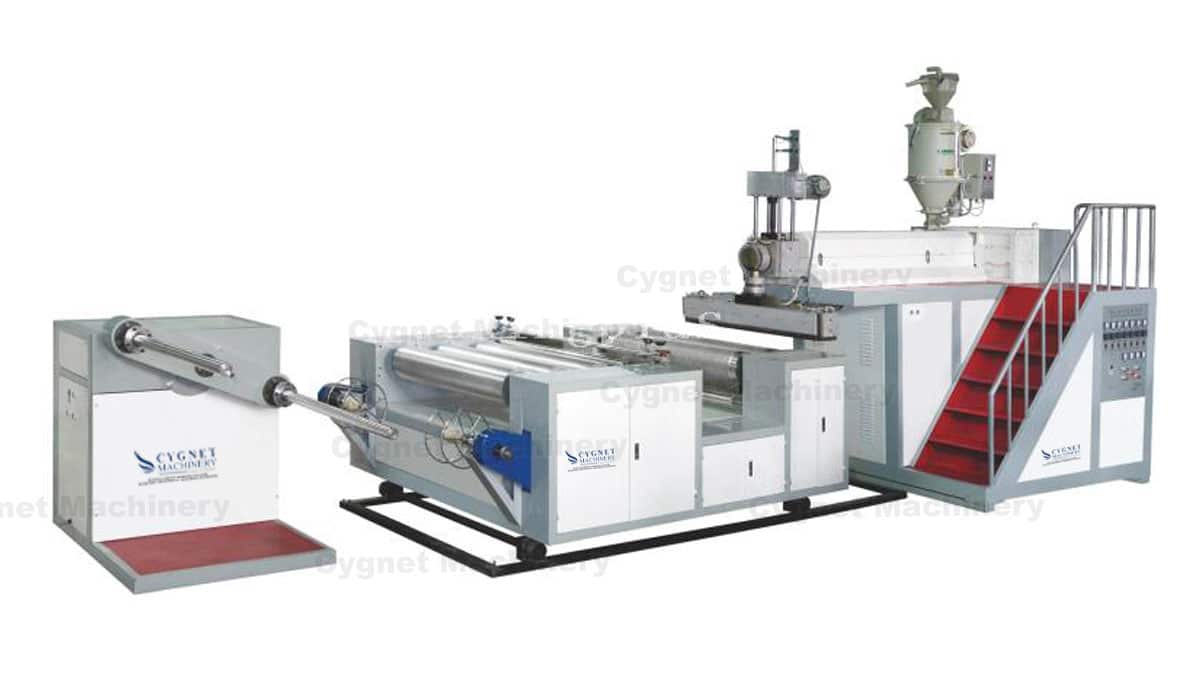

Cygnet Machinery manufactures advanced two-layer bubble film extruders, which consist of an extruding unit, die and head, forming unit, winding unit, and an electrical control system. Using raw materials such as LDPE, LLDPE, and recycled plastics, the machine produces high-quality bubble films through a single screw extruder at high temperatures.
The two-layer bubble film (bubble + PE layer) offers excellent cushioning properties, making it an economical and effective packaging material. Each layer can be individually controlled with different materials, formulations, and colors, providing flexibility for diverse applications. Air bubble film is widely used for packaging machine parts, electrical components, cosmetics, radiators, artifacts, and various delicate products.
Features
- Vibration-free structure with robust standard design.
- High-performance AC main motor with inverter drive for energy efficiency, minimal maintenance, and maximum productivity.
- Screw and barrel crafted from special nitro-alloy steel for durability and trouble-free operation.
- Designed for minimal power consumption and reduced labor requirements.
- Precision-engineered, high-quality imported die head for consistent film quality.
- Edge guide system for both unwinding and rewinding operations.
- Quick hydraulic filter-screen exchange system with an automatic material loading system.
Technical Specification
| Model | SCM-AB-75 | SCM-AB-90 | CM-AB-110 |
|---|---|---|---|
| Material To Be Processed | LDPE, LLDPE | LDPE, LLDPE | LDPE, LLDPE |
| Screw Dia | 75 mm | 90 mm | 110 mm |
| Barrel Feed Type | Smooth Feed | Smooth Feed | Smooth Feed |
| L D Ratio | 30:1 | 30:1 | 31:1 |
| Die | Dual Lip T – Die | Dual Lip T – Die | AB Die |
| Filter Type | Candle Filter / Screen Changer | Candle Filter / Screen Changer | Candle Filter /Screen Changer |
| Lay Flat Film Width Range | 1000 mm | 1500 mm | 2000 mm |
| Maximum Output | 80 Kg/Hr | 125 Kg/Hr | 150-180 Kg/Hr |
| Winder | Auto Turret Re-winder | Auto Turret Re-winder | Auto Turret Re-winder |
| Machine Connected Load | 86 KW (116 HP) | 114 KW (153 HP) | 130 KW (175 HP) |
| Dimensions (L x w x h ) Approx. In Feet |
30 x 15 x 18 Feet | 45 x 25 x 18 Feet | 50 x 30 x 20 Feet |
